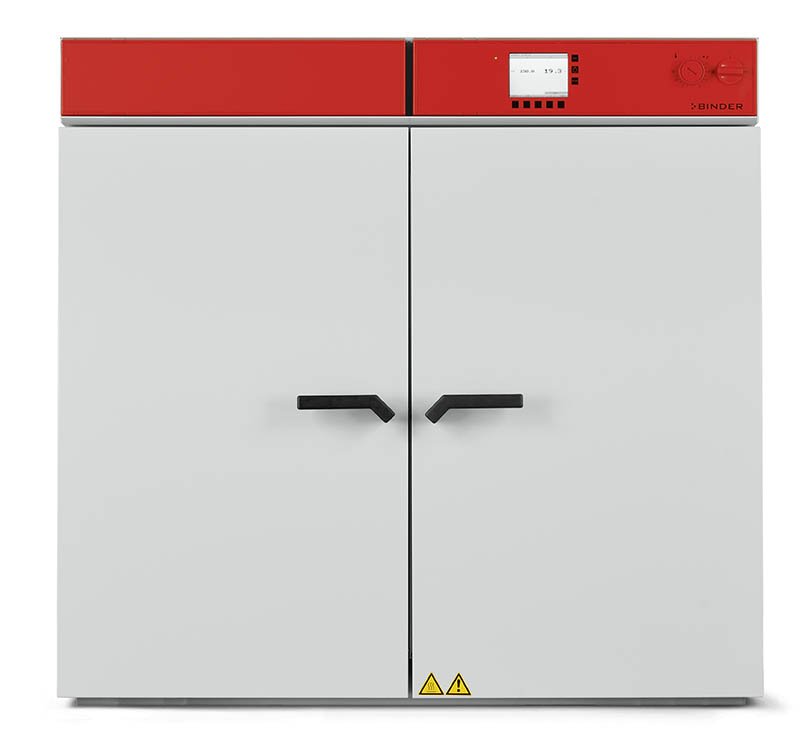

Binder | Model M 400 | Drying and Heating Chambers with Forced Convection and Advanced Program Functions

Download

Binder | Model M 400 | Drying and Heating Chambers with Forced Convection and Advanced Program Functions

Binder | Model M 400 | Drying and Heating Chambers with Forced Convection and Advanced Program Functions

Binder Test Cihazları Türkiye Distribütörü | Enfor

* Temperature range: +5 °C above ambient temperature to +300 °C
* APT.line™ preheating chamber technology
* Adjustable fan speed
* Program-controlled ventilation flap
* Color LCD controller with time-segment programming
* 2 chrome-plated racks
* Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
* Computer interface: RS 422



Description M400-400V *

Article Number 9010-0204
Performance Data Temperature
Temperature range +5 °C above ambient temperature to [°C] 300
Temperature variation at 150 °C [± K] 1.5
Temperature fluctuation at 150 °C [± K] 0.3
Heating-up time to 150 °C [min] 18
Recovery time after 30 seconds door open at 150 °C [min] 3
Air change data
Air change (approx.) at 150 °C [x/h] 54
Electrical data
Rated Voltage [V] 400
Power frequency [Hz] 50/60
Nominal power [kW] 3.4
Phase (Nominal voltage) 3~
Measures
Interior volume [L] 400
Net weight of the unit (empty) [kg] 173
Permitted load [kg] 90
Load per rack [kg] 35
Wall clearance back [mm] 160
Wall clearance sidewise [mm] 100
Internal Dimensions
Width [mm] 1000
Height [mm] 800
Depth [mm] 510
Housing dimensions not incl. fittings and connections
Width net [mm] 1235
Height net [mm] 1190
Depth net [mm] 795
Environment-specific data
Energy consumption at 150 °C [Wh/h] 1200
Fixtures
Number of shelves (std./max.) 2/10
