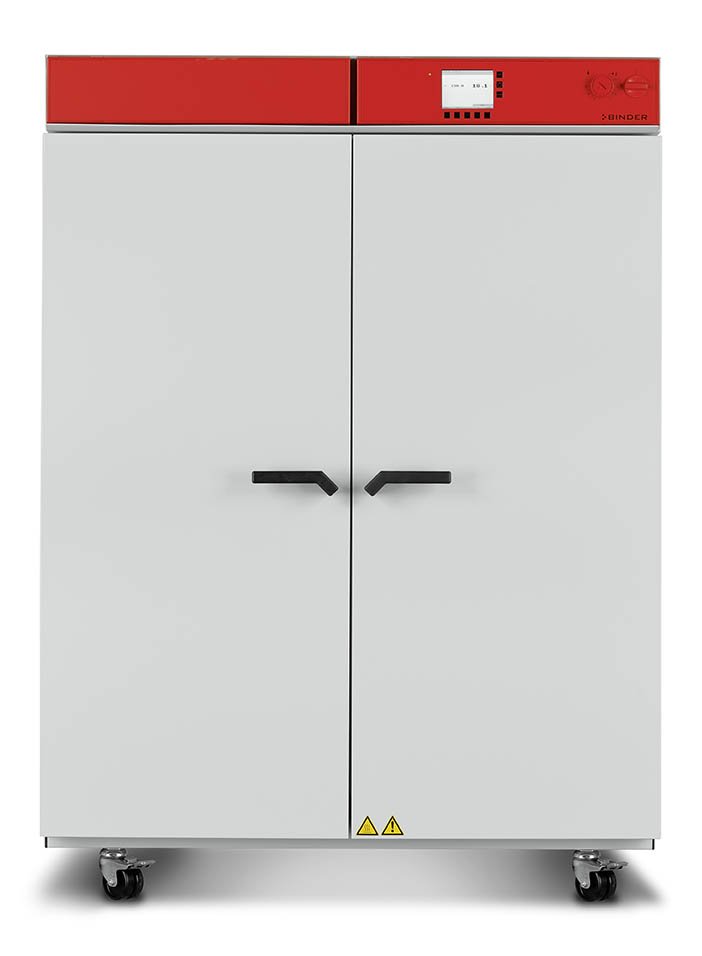

Binder | Model M 720 | Drying and Heating Chambers with Forced Convection and Advanced Program Functions

Binder Test Cihazları Türkiye Distribütörü | Enfor

* Temperature range: +5 °C above ambient temperature to +300 °C
* APT.line™ preheating chamber technology
* Adjustable fan speed
* Program-controlled ventilation flap
* Color LCD controller with time-segment programming
* 2 chrome-plated racks
* Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
* Computer interface: RS 422

Description	M720-400V *

Article Number	9010-0205
Performance Data Temperature
Temperature range +5 °C above ambient temperature to [°C]	300
Temperature variation at 150 °C [± K]	1.9
Temperature fluctuation at 150 °C [± K]	0.3
Heating-up time to 150 °C [min]	21
Recovery time after 30 seconds door open at 150 °C [min]	3
Air change data
Air change (approx.) at 150 °C [x/h]	36
Electrical data
Rated Voltage [V]	400
Power frequency [Hz]	50/60
Nominal power [kW]	5
Phase (Nominal voltage)	3~
Measures
Interior volume [L]	720
Net weight of the unit (empty) [kg]	203
Permitted load [kg]	120
Load per rack [kg]	45
Wall clearance back [mm]	160
Wall clearance sidewise [mm]	100
Internal Dimensions
Width [mm]	1000
Height [mm]	1200
Depth [mm]	610
Housing dimensions not incl. fittings and connections
Width net [mm]	1235
Height net [mm]	1690
Depth net [mm]	865
Environment-specific data
Energy consumption at 150 °C [Wh/h]	1320
Fixtures
Number of shelves (std./max.)	2/16
