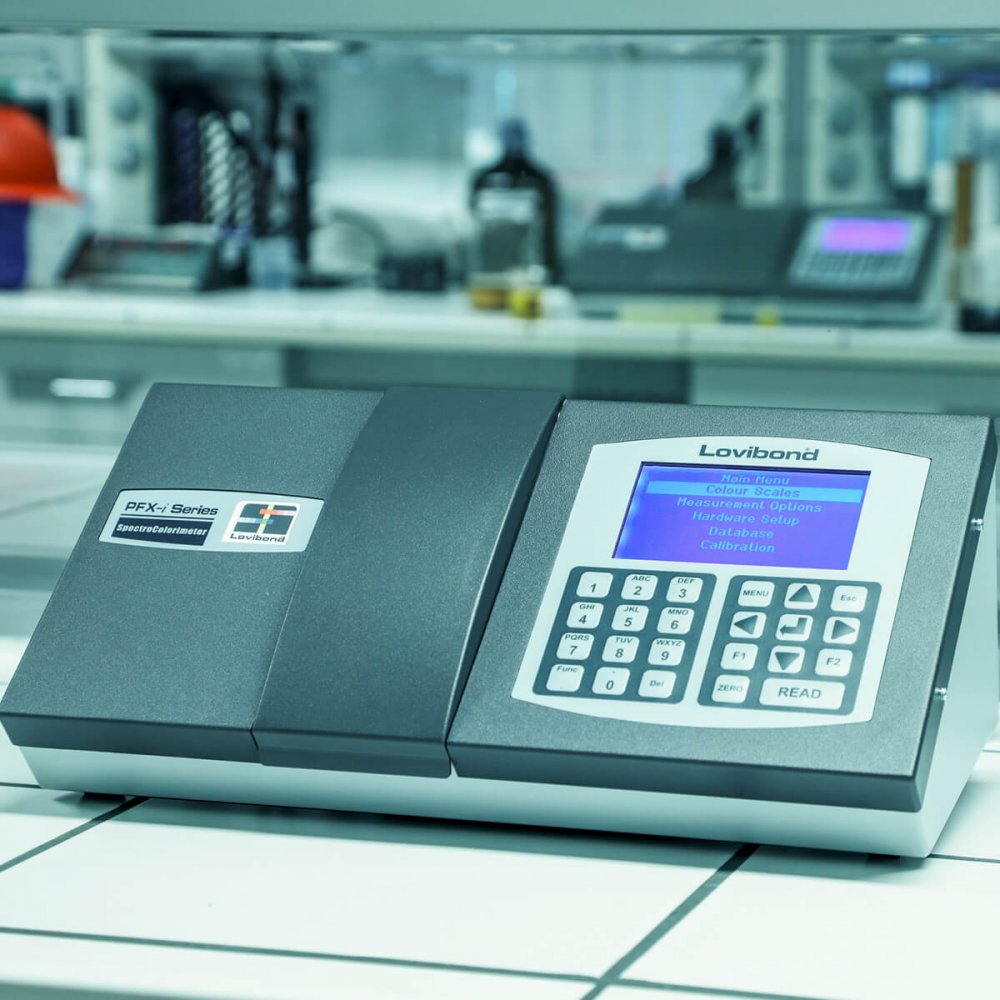

Lovibond PFXi-195 Series PFXi-195/7 Colorimeter

Download

Lovibond PFXi-195 Series PFXi-195/7 Colorimeter

PFXi-195/7
Colour Measurement for Sugar Solutions, Syrups & Honey

Part Number: 1371957

Applications: Sugar Solutions, Syrups and Honey



Colour Scales

ICUMSA Colour Index (ICUMSA GS 1/3-7, ICUMSA GS 2/3-9, ICUMSA GS 2/3-10)
ICUMSA Colour Index (ICUMSA GS 1/3-7, ICUMSA GS 2/3-9, ICUMSA GS 2/3-10)
ICUMSA Colour Index (ICUMSA GS 1/3-7, ICUMSA GS 2/3-9, ICUMSA GS 2/3-10)
Honey Colour
CIE L* a* b
Transmission %
Optical Density
Absorbance
Delta E* colour difference
xyY chromaticity co-ordinates
XYZ Tristimulus





Technical Data

Applicable Standard

3. Ber. Int. Fruit Juice 1961
50 FR 15861
ASTM E308
Honey Regulations CRC c.287

Colour Type

Transparent

Display

240 x 128, back-lit graphic display, (hite on blue)

Path Length

0.1 – 50 mm

Measuring Geometrics

0° - 180° Transmission

Interfaces

USB
RS 232
Ethernet

Detector

blue enhanced photodiode

Internal Storage

100,000+ Messungen

Measuring Principle

9 interference filters

Measurement Time

less than 30 seconds

Sample Chamber

max 50mm cells

Spectral Range

420 – 710 nm

Bandwidth

10 nm

Repeatability

±0.0004 (CIE xy Chromaticity) on measurements of de-ionised water

Baseline Calibration

Single key press; fully automated

Illuminants

CIE Illuminant A
CIE Illuminant B
CIE Illuminant C
CIE Illuminant D65

Portability

Benchtop

Observer

2°, 10°

Compliance

CE
RoHS
WEEE

Languages User Interface

English, German, French, Italian, Portuguese, Spanish, Russian, Chinese, Japanese

Dimensions

435 x 170 x 195 mm

Weight

6.8 kg
