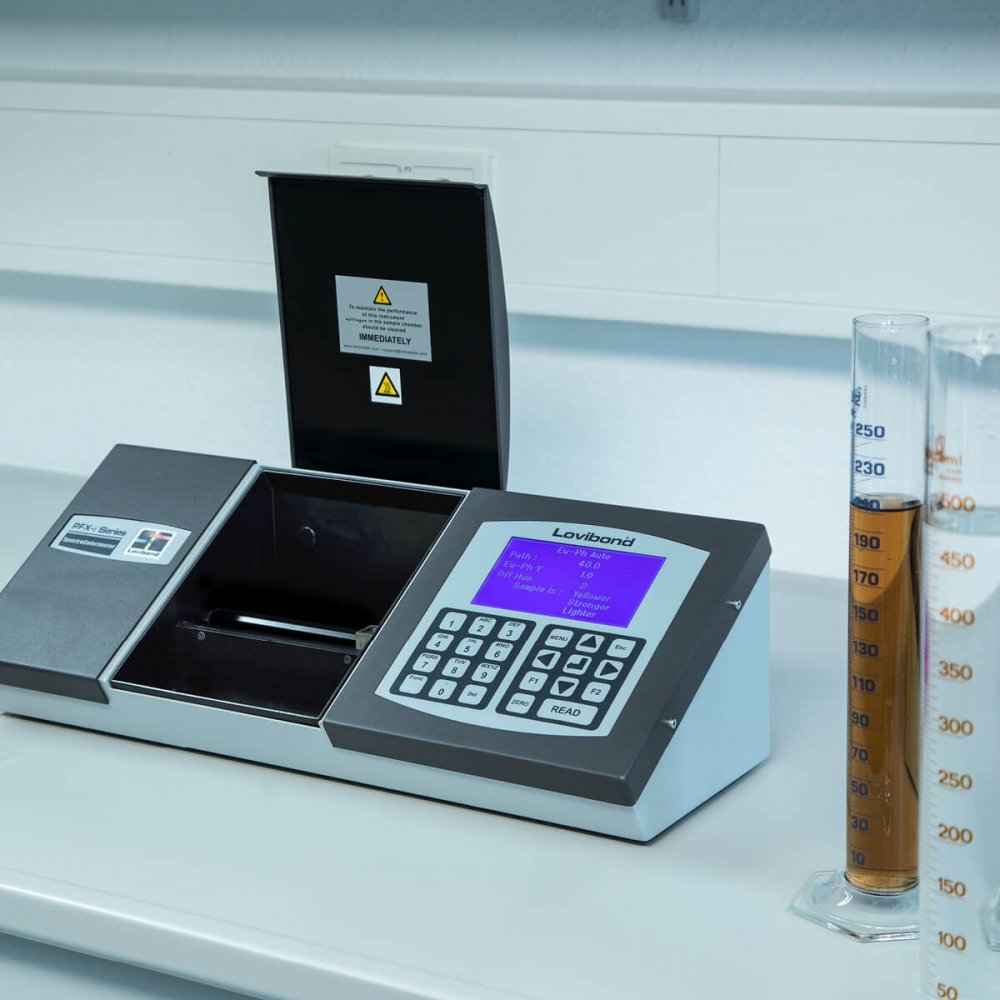

Lovibond PFXi-880 Series PFXi-880 AT heated Colorimeter

PFXi-880 AT heated
Colour Measurement for Oils & Fats

Part Number 1378802H

Applications: Edible Oils and Fats

Colour Scales

AOCS-Tintometer Colour (AOCS Cc 13b-45 the Wesson Method, AOCS Cc 8d-55, AOCS Cc 13j-97)
CIE L* a* b
Transmission %
Optical Density
Absorbance

Technical Data
Applicable Standard	AOCS Cc 8d-55 AOCS Cc 13b-45 AOCS Cc 13j-97 ASTM E308
Colour Type	Transparent
Display	240 x 128, back-lit graphic display, (white on blue)
Path Length	0.1 - 153 mm (0.004" - 6")
Measuring Geometrics	0° - 180° Transmission
Interfaces	USB RS 232 Ethernet
Detector	blue enhanced photodiode
Internal Storage	100,000+ Messungen
Measuring Principle	16 interference filters
Measurement Time	less than 30 seconds
Sample Chamber	max 6" (153mm) cells
Spectral Range	420 – 710 nm
Bandwidth	10 nm
Repeatability	±0.0002 (CIE xy Chromaticity) on measurements of de-ionised water
Baseline Calibration	Single key press; fully automated
Illuminants	CIE Illuminant A CIE Illuminant B CIE Illuminant C CIE Illuminant D65
Portability	Benchtop
Observer	2°, 10°
Compliance	CE RoHS WEEE
Languages User Interface	English, German, French, Italian, Portuguese, Spanish, Russian, Chinese, Japanese
Dimensions	515 x 170 x 196 mm
Weight	7.7 kg
