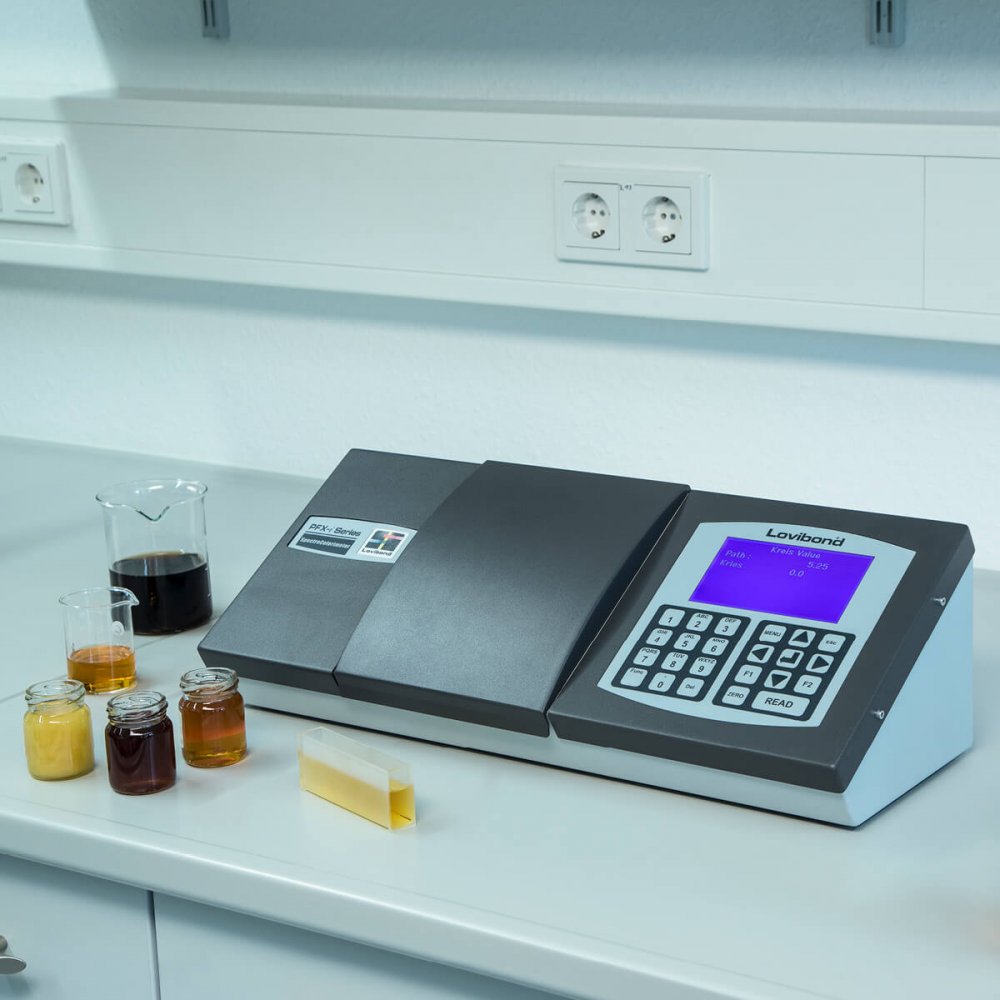

Lovibond PFXi-880 Series PFXi-880/CIE Colorimeter

Download

Lovibond PFXi-880 Series PFXi-880/CIE Colorimeter

PFXi-880/CIE
Colour Measurement for Transparent Samples

Part Number: 1378806

Applications: Beer, Malts and Caramels I Chemicals I Coatings I Edible Oils and Fats I Food and Beverage I Household Products I Medical and Clinical Products I Petroleum Oils and Waxes I Pharmaceuticals and Cosmetics I Plastics I Sugar Solutions, Syrups and Honey I Waste Water Treatment



Colour Scales

CIE L* a* b
Transmission %
Optical Density
CIELAB (L*C*h)
Delta xyY colour difference
Delta XYZ colour difference
Delta E* colour difference
Optical density (Absorbance)





Technical Data

Applicable Standard

ASTM E308

Colour Type

Transparent

Display

240 x 128, back-lit graphic display, (white on blue)

Path Length

0.1 - 153 mm (0.004" - 6")

Measuring Geometrics

0° - 180° Transmission

Interfaces

USB
RS 232
Ethernet

Detector

blue enhanced photodiode

Internal Storage

100,000+ Messungen

Measuring Principle

16 interference filters

Measurement Time

less than 30 seconds

Sample Chamber

max 6" (153mm)  cells

Spectral Range

420 – 710 nm

Bandwidth

10 nm

Repeatability

±0.0002 (CIE xy Chromaticity) on measurements of de-ionised water

Baseline Calibration

Single key press; fully automated

Illuminants

CIE Illuminant A

CIE Illuminant B

CIE Illuminant C

CIE Illuminant D65

Portability

Benchtop

Observer

2°, 10°

Compliance

CE
RoHS
WEEE

Languages User Interface

English, German, French, Italian, Portuguese, Spanish, Russian, Chinese, Japanese

Dimensions

515 x 170 x 196 mm

Weight

7.7 kg
