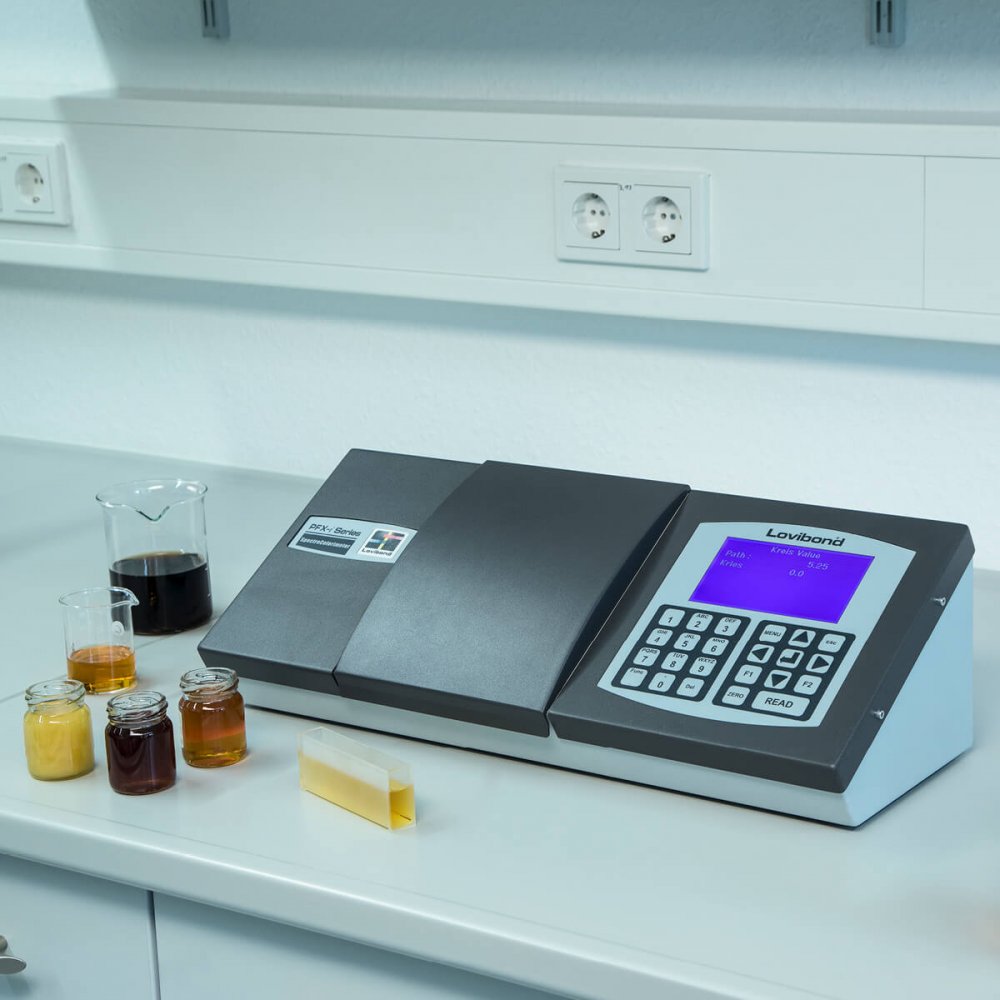

Lovibond PFXi-880 Series PFXi-880/S heated Colorimeter

Download

Lovibond PFXi-880 Series PFXi-880/S heated Colorimeter

PFXi-880/S heated
Colour Measurement for Sugar Solutions, Syrups & Honey

Part Number: 1378805H

Applications: Sugar Solutions, Syrups and Honey



Colour Scales

ICUMSA Colour Index (ICUMSA GS 1/3-7, ICUMSA GS 2/3-9, ICUMSA GS 2/3-10)
ICUMSA Colour Index (ICUMSA GS 1/3-7, ICUMSA GS 2/3-9, ICUMSA GS 2/3-10)
ICUMSA Colour Index (ICUMSA GS 1/3-7, ICUMSA GS 2/3-9, ICUMSA GS 2/3-10)
Lovibond® RYBN Colour
CIE L* a* b
Optical Density
Absorbance
Transmission %



Technical Data

Applicable Standard

3. Ber. Int. Fruit Juice 1961
AOCS Cc 13e-92
AOCS Cc 13j-97
ASTM E308
BS684
ISO 15305

Colour Type

Transparent

Display

240 x 128, back-lit graphic display, (hite on blue)

Path Length

0.1 - 153 mm (0.004" - 6")

Measuring Geometrics

0° - 180° Transmission

Interfaces

USB
RS 232
Ethernet

Detector

blue enhanced photodiode

Internal Storage

100,000+ Messungen

Measuring Principle

16 interference filters

Measurement Time

less than 30 seconds

Sample Chamber

max 50mm cells

Spectral Range

420 – 710 nm

Bandwidth

10 nm

Repeatability

±0.0002 (CIE xy Chromaticity) on measurements of de-ionised water

Baseline Calibration

Single key press; fully automated

Illuminants

CIE Illuminant A
CIE Illuminant B
CIE Illuminant C
CIE Illuminant D65

Portability

Benchtop

Observer

2°, 10°

Compliance

CE
RoHS
WEEE

Languages User Interface

English, German, French, Italian, Portuguese, Spanish, Russian, Chinese, Japanese

Dimensions

515 x 170 x 196 mm

Weight

7.7 kg
