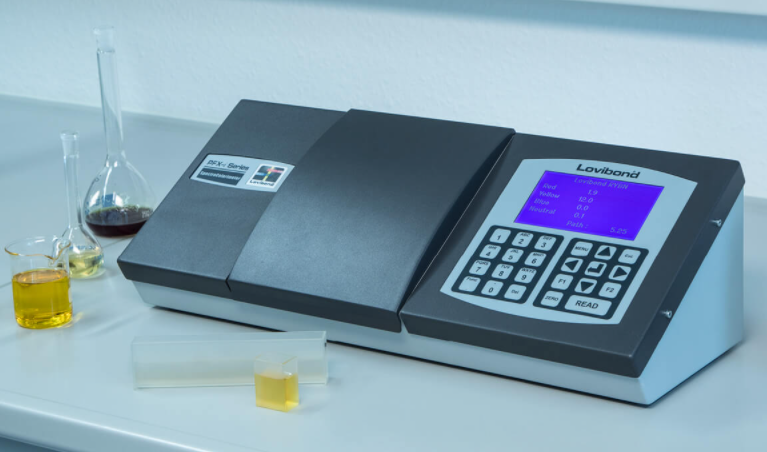

Lovibond PFXi-955 Series PFXi-955 Colorimeter

Download

Lovibond PFXi-955 Series PFXi-955 Colorimeter

PFXi-995
Colour Measurement for Transparent Samples

Part Number:1379951

Applications: Chemicals I Edible Oils and Fats I Food and Beverage I Household Products I Petroleum Oils and Waxes



Colour Scales

AOCS-Tintometer Colour (AOCS Cc 13b-45 the Wesson Method, AOCS Cc 8d-55, AOCS Cc 13j-97)
FAC Colour (AOCS Cc 13a-43)
Gardner Colour (ASTM D 1544, ASTM D 6166, AOCS Td 1a, MS 817 Part 10)
Iodine Colour (DIN 6162)
Lovibond® RYBN Colour
Chlorophyll A (AOCS Cc 13d-55)
Hess-Ives Colour Units (DGK F050.2)
Kreis Value
Pt-Co
Beta Carotene (BS684 Section 2.20)
CIE L* a* b
Transmission %
Optical Density
Absorbance
CIELAB (L*C*h)
Klett Colour
Hunter Lab
Delta xyY colour difference
Delta XYZ colour difference
Delta E* colour difference
Absorptance



Technical Data

Applicable Standard

AOCS Cc 8d-55
AOCS Cc 13a-43
AOCS Cc 13b-45
AOCS Cc 13d-55
AOCS Cc 13e-92
AOCS Cc 13j-97
AOCS Dd 5
ASTM D1209
ASTM D1544
ASTM D6166
ASTM E308
BS684
BS684 Section 2.20
DIN 6162
ISO 6271
ISO 15305

Colour Type

Transparent

Display

240 x 128, back-lit graphic display, (white on blue)

Path Length

0.1 - 153 mm (0.004" - 6")

Measuring Geometrics

0° - 180° Transmission

Interfaces

USB
RS 232
Ethernet

Detector

blue enhanced photodiode

Internal Storage

100,000+ Messungen

Measuring Principle

16 interference filters

Measurement Time

less than 30 seconds

Sample Chamber

max 6" (153mm)  cells

Spectral Range

420 – 710 nm

Bandwidth

10 nm

Repeatability

±0.0002 (CIE xy Chromaticity) on measurements of de-ionised water

Baseline Calibration

Single key press; fully automated

Illuminants

CIE Illuminant A

CIE Illuminant B

CIE Illuminant C

CIE Illuminant D65

Portability

Benchtop

Observer

2°, 10°

Compliance

CE
RoHS
WEEE

Languages User Interface

English, German, French, Italian, Portuguese, Spanish, Russian, Chinese, Japanese

Dimensions

515 x 170 x 196 mm

Weight

7.7 kg
