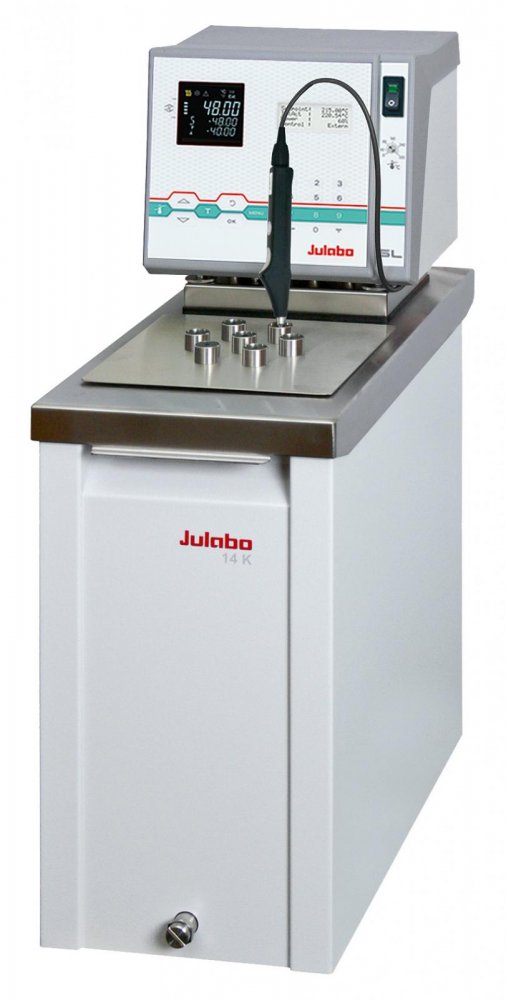

SL-14K - Calibration Bath

Technical Data

Working temperature range (°C): +50 ... +300

Temperature stability (°C): ±0.005

Setting / display resolution: 0.01 °C

Integrated programmer: 6x60 steps

Temperature Display: VFD , LCD

Heating capacity (kW): 3

Pump capacity flow rate (l/min): 22-26

Pump capacity flow pressure (bar): 0.4-0.7

Pump capacity flow suction (bar): 0.2-0.4

Bath opening / bath depth (W x L / D cm): Ø = 12 / 31 cm

Filling volume (liters): 14

External Pt100 sensor connection: integrated

Digital interfaces: RS232

Optional: Profibus

Ambient temperature: 5...40 °C

Dimensions W x L x H (cm): 22 x 46 x 61

Weight (kg): 20

Classification according to DIN12876-1: Classification III (FL)

Included with each unit Including bath cover with 7 openings Temperature stability at +200°C: ±0.02°C

Bath cover: integrated
