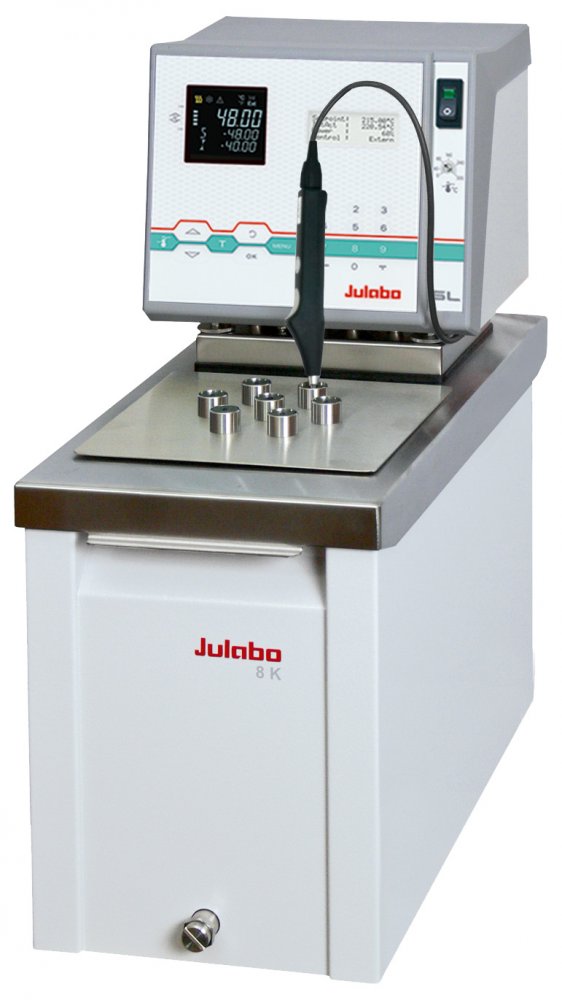

SL-8K - Calibration Bath

Download

SL-8K - Calibration Bath

Technical Data
Working temperature range (°C): +50 ... +300
Temperature stability (°C): ±0.005
Setting / display resolution: 0.01 °C
Integrated programmer: 6x60 steps
Temperature Display: VFD , LCD
Heating capacity (kW): 3
Pump capacity flow rate (l/min): 22-26
Pump capacity flow pressure (bar): 0.4-0.7
Pump capacity flow suction (bar): 0.2-0.4
Bath opening / bath depth (W x L / D cm): Ø = 12 / 17 cm
Filling volume (liters): 8
External Pt100 sensor connection: integrated
Digital interfaces: RS232
Optional: Profibus
Ambient temperature: 5...40 °C
Dimensions W x L x H (cm): 22 x 46 x 47
Weight (kg): 16
Classification according to DIN12876-1: Classification III (FL)
Included with each unit Including bath cover with 7 openings .
Temperature stability at +200°C: ±0.02°C
Optional: Electronic module with analog connections for external programming, temperature recorder, standby, alarm (Order no. 8 900 100).
Bath cover: integrated
