Sonorex Digitec Ultasonic Baths

Sonorex Digitec Ultrasonic Baths

full convenience in use and display for all bath types
easy to operate - self-explanatory symbols well recognizable parameters,
target as well as actual values - brightly lighting LED-display
4-step-operation as "plug and clean"
heater 20-80 °C, thermostatically adjustable, with LED-display for target value and actual value of temperature
optical signal in case of excess temperature
timer for countdown and continuous operation
DEGAS: adjustable pulse sound level for removing unwanted air bubbles, visible at LCD-display
automatic short-time ultrasound during heating
up period to avoid delay in boiling - switch-off possible
CE marked as medical device
quality management system according to the requirements of EN ISO 13485/11.2000 in the production line
protection class IP 33 at highest possible level through liquid-tight mains cable and housing front without openings.
SweepTec for permanent sound field oscillation ensures even and gentle cleaning
utility patent DE 202 21 041
automatical safety shut-down 12 hours after last keypress
marking of filling level for safe dosage
one-piece welded drain bow
PZT-transducers with high efficiency

Internal tank dimensions (l × w ×d)	Capacity	Type	Drain ball valve	External dimensions (l × w × d)
mm	l			mm

190 × 85 × 60	0,9	DT 31	-	205 × 100 × 180
190 × 85 × 60	0,9	DT 31 H	-	205 × 100 × 180
150 × 140 × 100	1,8	DT 52	-	175 × 165 × 230
150 × 140 × 100	1,8	DT 52 H	-	175 × 165 × 230
240 × 140 × 100	3,0	DT 100	-	260 × 160 × 250
240 × 140 × 100	3,0	DT 100 H	-	260 × 160 × 250

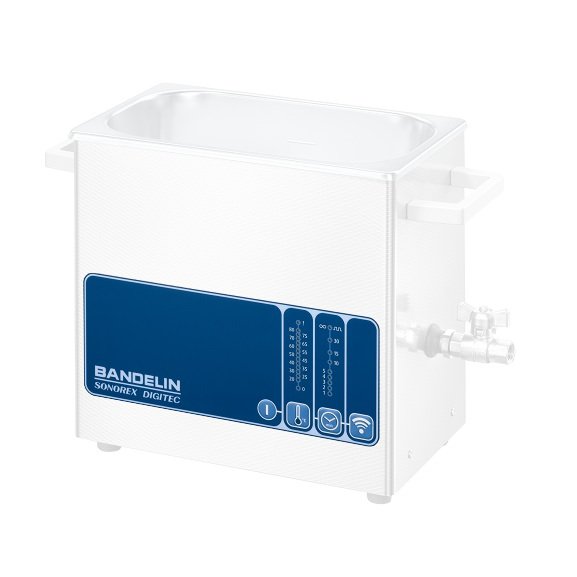

240 × 140 × 100	3,0	DT 102 H	G 1/4	260 × 160 × 250
240 × 140 × 150	4,0	DT 103 H	G 1/4	260 × 160 × 310
Ø 240, 130 deep	5,6	DT 106	G 1/4	Ø 265 × 270
500 × 140 × 100	6,0	DT 156	G 1/4	530 × 165 × 245
500 × 140 × 150	9,0	DT 156 BH	G 1/4	530 × 165 × 300
300 × 150 × 150	5,5	DT 255	G 1/4	325 × 175 × 295
300 × 150 × 150	5,5	DT 255 H	G 1/4	325 × 175 × 295
300 × 240× 150	9,7	DT 510	G 1/2	325 × 265 × 305
300 × 240× 150	9,7	DT 510 H	G 1/2	325 × 265 × 305
300 × 240 × 200	13,0	DT 512 H	G 1/2	325 × 265 × 350
325 × 300 × 150	13,5	DT 514	G 1/2	355 × 325 × 305
325 × 300 × 150	13,5	DT 514 H	G 1/2	355 × 325 × 305
325 × 300 × 200	18,7	DT 514 BH	G 1/2	355 × 325 × 385
500 x 300 x 200	28,0	DT 1028	G 1/2	535 × 325 × 400
500 x 300 x 200	28,0	DT 1028 H	G 1/2	535 × 325 × 400
500 × 300 × 300	45,0	DT 1028 CH	G 1/2	540 × 340 × 500
600 × 500 × 300	90,0	DT 1050 CH	G 1/2	640 × 540 × 530
