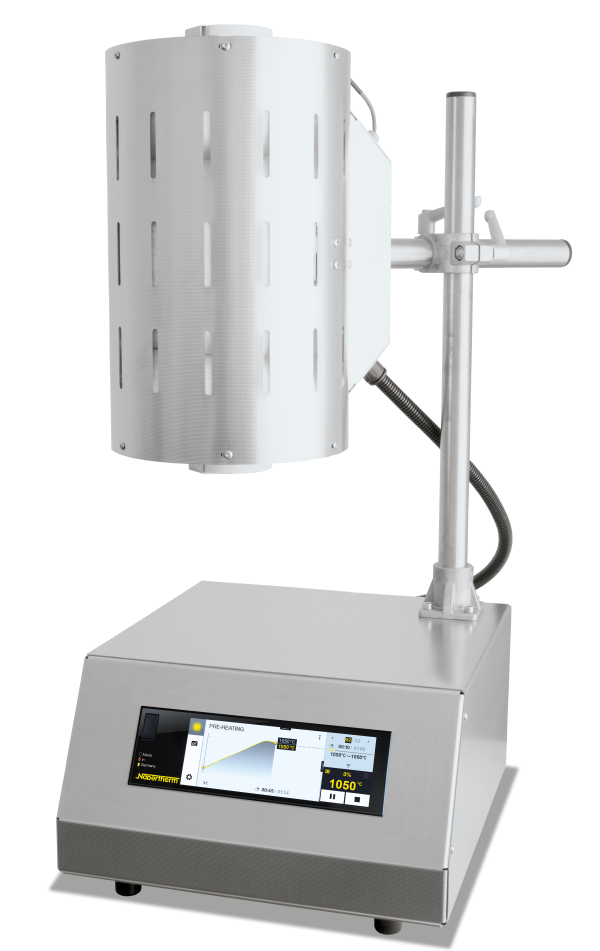

Tube Furnaces with Stand for Horizontal and Vertical Operation up to 1500 °C

These compact tube furnaces are used when laboratory experiments must be performed horizontally, vertically, or at specific angles. The ability to configure the angle of tilt and the working height, and their compact design, also make these tube furnaces suitable for integration into existing process systems.

Standard Equipment
Tmax 1100 °C, 1300 °C, or 1500 °C
Compact design
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
Vertical or horizontal operation infinitely adjustable
Angle infinitely adjustable from 0 to 90
Working height infinitely adjustable
Operation also possible without stand if safety guidelines are observed
Ceramic working tube C 530 including two fiber plugs for operation under air
Type S thermocouple
Solid state relays provide for lownoise operation
Heating wires wound directly around the working tube resulting in very fast heat-up rates
Control system integrated in furnace base
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Controller B510 (5 programs with each 4 segments)
