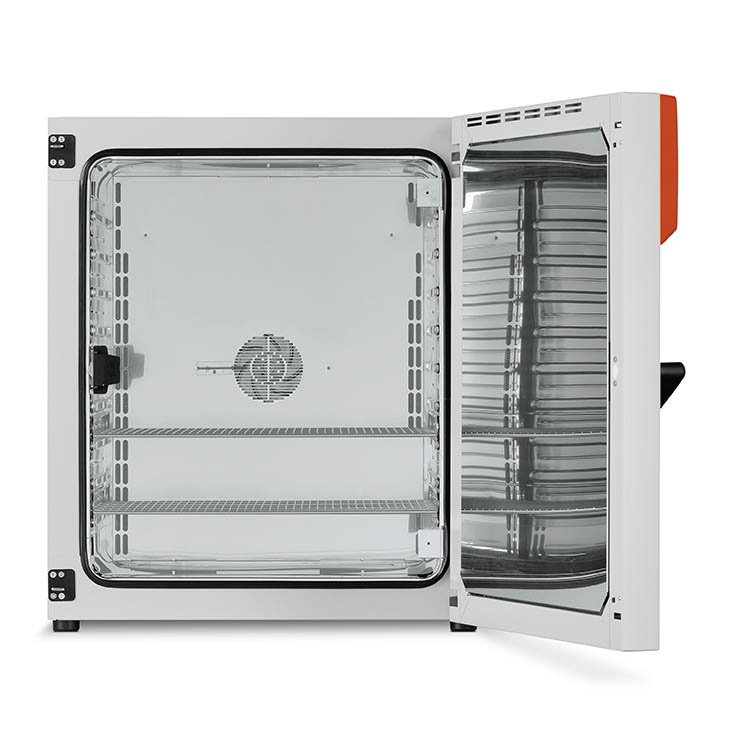

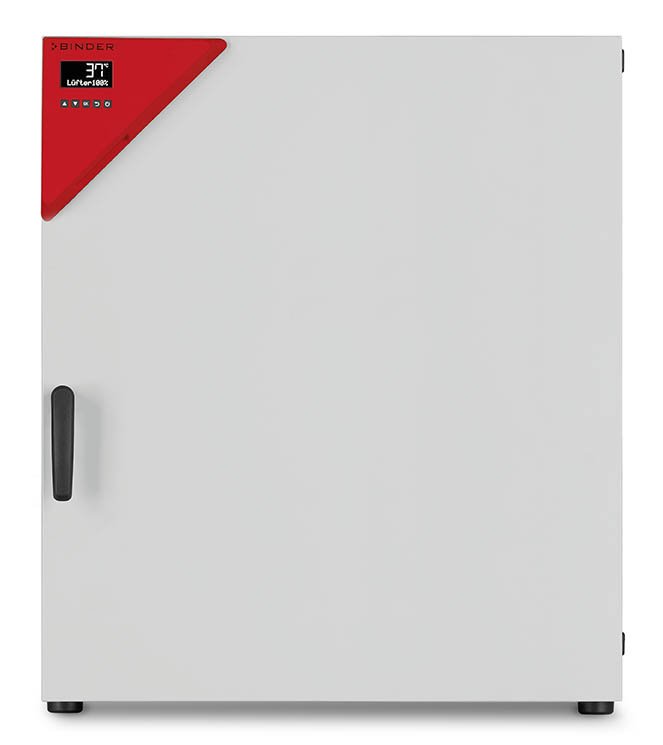

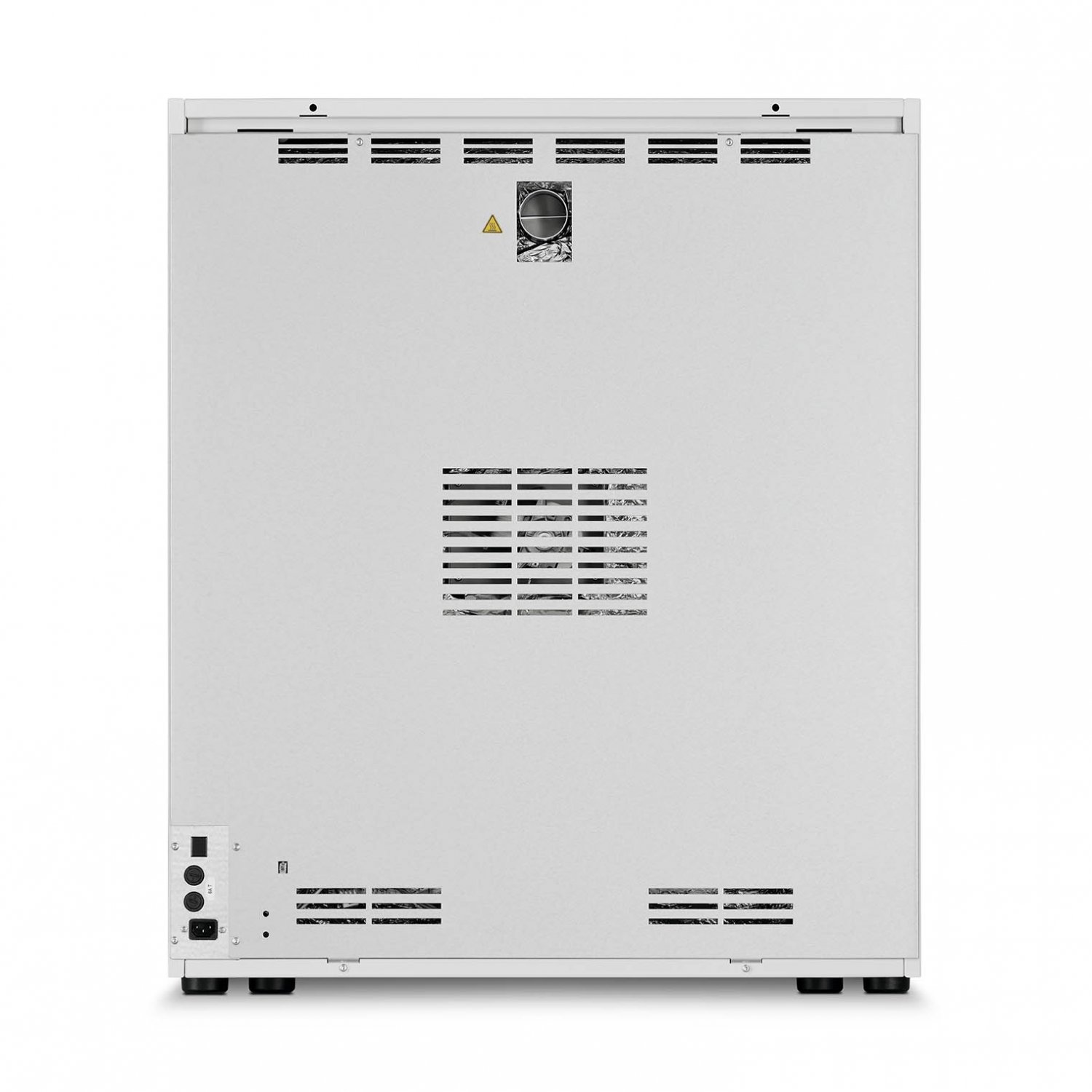

Binder | Model BF 260 | Standard-Incubators with forced convection

Binder | Model BD 260 | Standard-Incubators with natural convection

Binder Test Cihazları Türkiye Distribütörü | Enfor

Temperature range: +7 °C above ambient temperature to +100 °C
High temperature accuracy thanks to APT.line™ technology
Forced convection
Controller with LCD display
Electromechanical control of the exhaust air flap
Inner door made of tempered safety glass
2 chrome-plated racks
Class 3.1 integrated independent temperature safety device (DIN 12880) with visual
Ergonomic handle design
USB port for recording data

Description	BF260-230V *	BF260UL-120V *

Article Number	9010-0319	9010-0320
Performance Data Temperature
Temperature range +7 °C above ambient temperature to [°C]	100	100
Temperature range +8 °C above ambient temperature to [°C]
Temperature range +10 °C above ambient temperature to [°C]
Temperature variation at 37 °C [± K]	0.2	0.3
Temperature fluctuation at 37 °C [± K]	0.1	0.1
Heating-up time to 37 °C [min]	7	7
Recovery time after 30 seconds door open at 37 °C [min]	3	3
Electrical data
Rated Voltage [V]	230	120
Power frequency [Hz]	50/60	60
Nominal power [kW]	0.9	1
Unit fuse [A]	8	12.5
Phase (Nominal voltage)	1~	1~
Measures
Interior volume [L]	257	257
Net weight of the unit (empty) [kg]	82	82
Permitted load [kg]	270	270
Load per rack [kg]	40	40
Wall clearance back [mm]	160	160
Wall clearance sidewise [mm]	100	100
Internal Dimensions
Width [mm]	650	650
Height [mm]	780	780
Depth [mm]	510	510
Doors
Inner doors
Unit doors	1	1
Housing dimensions not incl. fittings and connections
Width net [mm]	810	810
Height net [mm]	845	845
Depth net [mm]	760	760
Environment-specific data
Energy consumption at 37 °C [Wh/h]	65	65
Sound-pressure level [dB(A)]	43	43
Fixtures
Number of shelves (std./max.)	2/8	2/8
