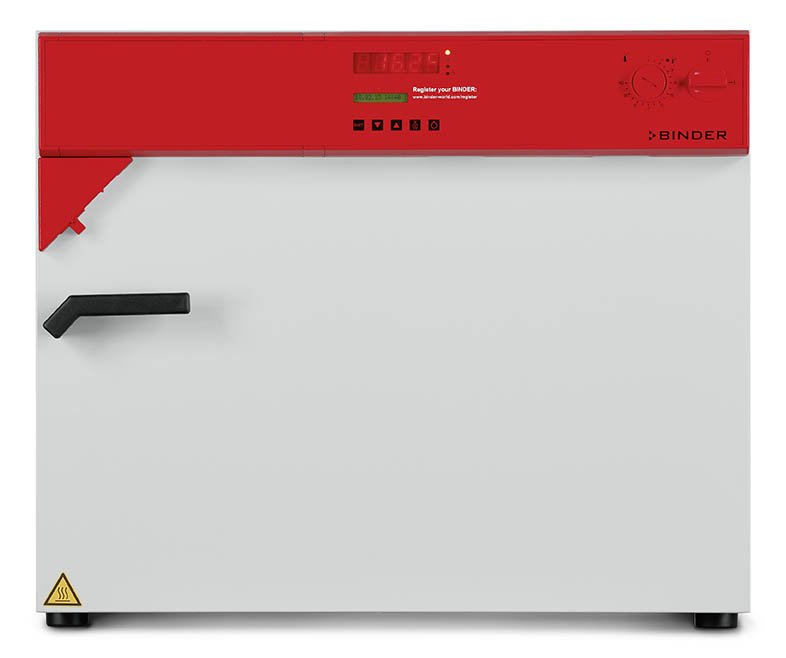

Binder | Model FP 115 | Drying and Heating Chambers with Forced Convection and Program Functions

Binder Test Cihazları Türkiye Distribütörü | Enfor

* Temperature range: +5 °C above ambient temperature to +300 °C
* APT.line™ preheating chamber technology
* Adjustable fan speed
* Adjustable exhaust air flap
* Controller with time-segment and real-time programming
* 2 chrome-plated racks
* Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
* Computer interface: RS 422

Description	FP115-230V *	FP115UL-120V *

Article Number	9010-0255	9010-0262
Performance Data Temperature
Temperature range +5 °C above ambient temperature to [°C]	300	300
Temperature variation at 150 °C [± K]	1.8	1.8
Temperature fluctuation at 150 °C [± K]	0.3	0.3
Heating-up time to 150 °C [min]	30	30
Recovery time after 30 seconds door open at 150 °C [min]	8	8
Air change data
Air change (approx.) at 150 °C [x/h]	32	32
Electrical data
Rated Voltage [V]	230	120
Power frequency [Hz]	50/60	60
Nominal power [kW]	1.6	1.6
Unit fuse [A]	10	16
Phase (Nominal voltage)	1~	1~
Measures
Interior volume [L]	115	115
Net weight of the unit (empty) [kg]	62	62
Permitted load [kg]	50	50
Load per rack [kg]	20	20
Wall clearance back [mm]	160	160
Wall clearance sidewise [mm]	100	100
Internal Dimensions
Width [mm]	600	600
Height [mm]	480	480
Depth [mm]	410	410
Housing dimensions not incl. fittings and connections
Width net [mm]	835	835
Height net [mm]	705	705
Depth net [mm]	645	645
Environment-specific data
Energy consumption at 150 °C [Wh/h]	544	544
Fixtures
Number of shelves (std./max.)	2/6	2/6
