DLAB UV Spectrophotometers
|
DLAB SP-V1000 Model UV Spectrophotometers |
|
DLAB SP-V1100 Model UV Spectrophotometers |
||
|
Specifications |
SP-V1000 |
|
Specifications |
SP-V1100 |
|
Optical Systen |
Single Beam |
Optical Systen |
Single Beam |
|
|
Light Source |
Tungsten lamp |
Light Source |
Tungsten lamp |
|
|
Spectral Bandwidth |
4.0nm |
Spectral Bandwidth |
2.0nm |
|
|
Wavelength Range |
325-1000nm |
Wavelength Range |
320-1100nm |
|
|
Wavelength Accuracy |
±2nm |
Wavelength Accuracy |
±0.5nm |
|
|
Wavelength Repeatability |
≤1nm |
Wavelength Repeatability |
≤0.3nm |
|
|
Photometric Range |
-0.3-3.0A， 0-200%T |
Photometric Range |
-0.3-3.0A， 0-200%T |
|
|
Photometric Accuracy |
±0.003A@0.5A, ±0.006A@1.0A, ±0.5%T@100%T |
Photometric Accuracy |
±0.002A@0.5A, |
|
|
Photometric Repeatability |
≤0.0015A@0.5A, ≤0.003A@1.0A, ≤0.25%T@100%T |
Photometric Repeatability |
≤0.001A@0.5A, |
|
|
Stability |
≤0.002A/h @500nm |
Stability |
≤0.002A/h @500nm |
|
|
Stray Light |
≤0.2%T@360nm |
Stray Light |
≤0.05%T@360nm |
|
|
Sample Compartment |
4-position,10mm |
Sample Compartment |
4-position,10mm |
|
|
Display |
LCD |
Display |
LCD |
|
|
Output |
USB Port&Parallel Port (Printer) |
Output |
USB Port&Parallel Port (Printer) |
|
|
Power |
110/220VAC, 50/60Hz,80W |
Dimension (L×W×H) |
490×360×210mm |
|
|
Dimension (L×W×H) |
490×360×210mm |
Power |
110/220VAC, 50/60Hz,80W |
|
|
Weight |
12kg |
Weight |
12kg |
|
|

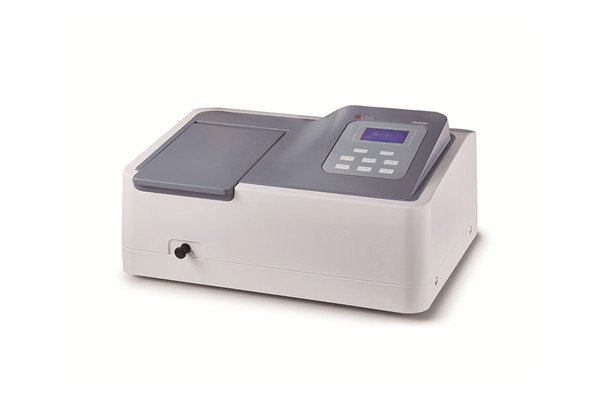

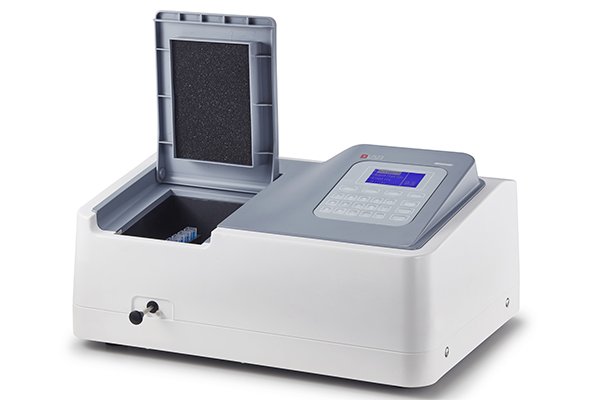

DLAB SP-UV1000 Model UV Spectrophotometers |
|
DLAB SP-UV1100 Model UV Spectrophotometers |
||
|
Specifications |
SP-UV1100 |
|
Specifications |
SP-UV1100 |
|
Optical System |
Single Beam |
Optical System |
Single Beam |
|
|
Light Source |
Tungsten lamp&Deuterium lamp |
Light Source |
Tungsten lamp&Deuterium lamp |
|
|
Spectral Bandwidth |
2.0nm |
Spectral Bandwidth |
2.0nm |
|
|
Wavelength Range |
200-1000nm |
Wavelength Range |
190-1100nm |
|
|
Wavelength Accuracy |
±0.5nm |
Wavelength Accuracy |
±0.5nm |
|
|
Wavelength Repeatability |
≤0.3nm |
Wavelength Repeatability |
≤0.3nm |
|
|
Photometric Range |
-0.3-3.0A， 0-200%T |
Photometric Range |
-0.3-3.0A， 0-200%T |
|
|
Photometric Accuracy |
±0.002A@0.5A, |
Photometric Accuracy |
±0.002A@0.5A, |
|
|
Photometric Repeatability |
≤0.001A@0.5A, |
Photometric Repeatability |
≤0.001A@0.5A, |
|
|
Stability |
≤0.002A/h @500nm |
Stability |
≤0.002A/h @500nm |
|
|
Stray Light |
≤0.05%T@220&360nm |
Stray Light |
≤0.05%T@220&360nm |
|
|
Sample Compartment |
4-position,10mm |
Sample Compartment |
4-position,10mm |
|
|
Display |
LCD |
Display |
LCD |
|
|
Output |
USB Port&Parallel Port (Printer) |
Output |
USB Port&Parallel Port (Printer) |
|
|
Power |
110/220VAC,50/60Hz,120W |
Power |
110/220VAC,50/60Hz,120W |
|
|
Dimension (L×W×H) |
490×360×210mm |
Dimension (L×W×H) |
490×360×210mm |
|
|
Weight |
14kg |
Weight |
14kg |
|
